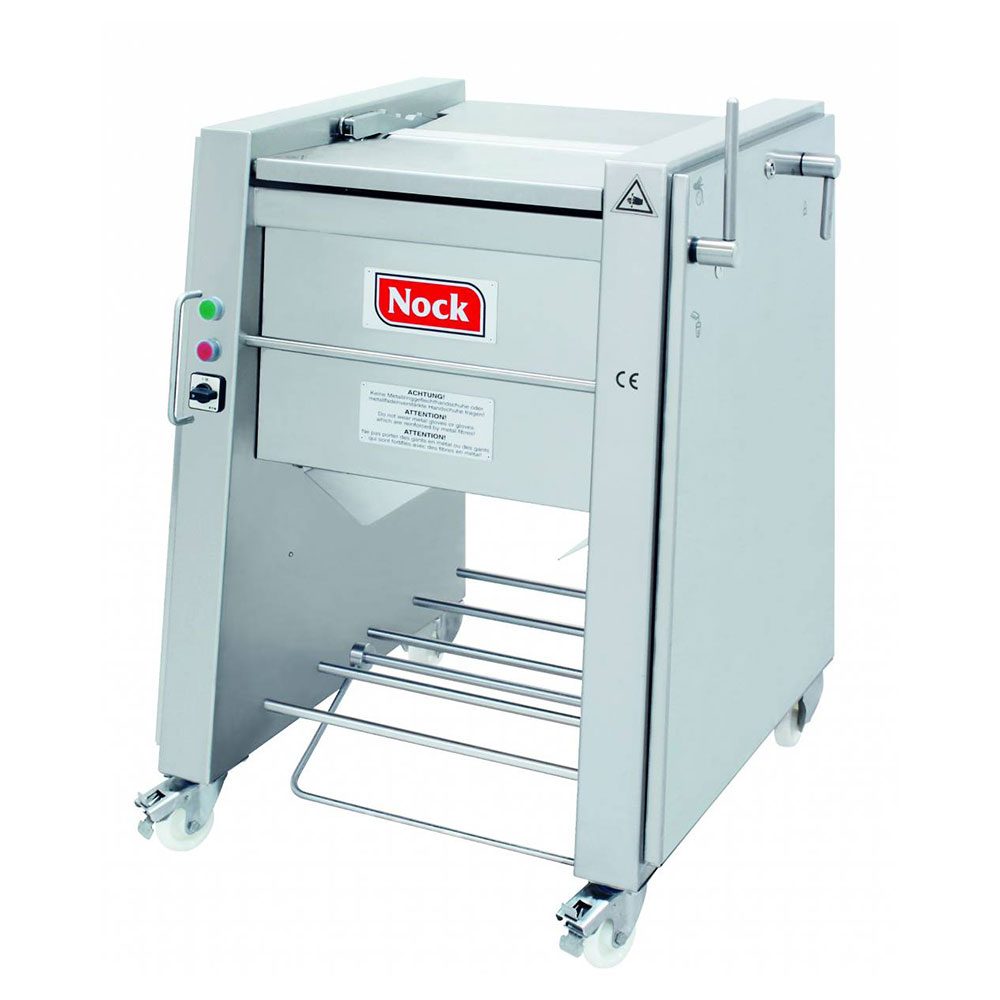

NOCK CORTEX CF 460 FISH SKINNER

Enquire Now

NOCK CORTEX CF 460 FISH SKINNER

Open Top fish skinner with CF technology and universal application.

FEATURES AND APPLICATION RANGE

cutting width: 430 mm
cutting speed: 24 m/min
features:
  • open top fish skinning machine with CF technology
  • 3 methods of skinning:
    – thin skinning (shallow skinning) with sharp blade
    – pulling-off the skin with blunt blade (silver skinning)
    – restircted: deep skinning with sharp blade
application:
  • universal application for many fish species
  • special application for fish with thick skin, e.g. salmon, salmon trout, flat fish like plaice or sole, etc.
  • also suitable to skin fish with thin skin

STANDARD EQUIPMENT

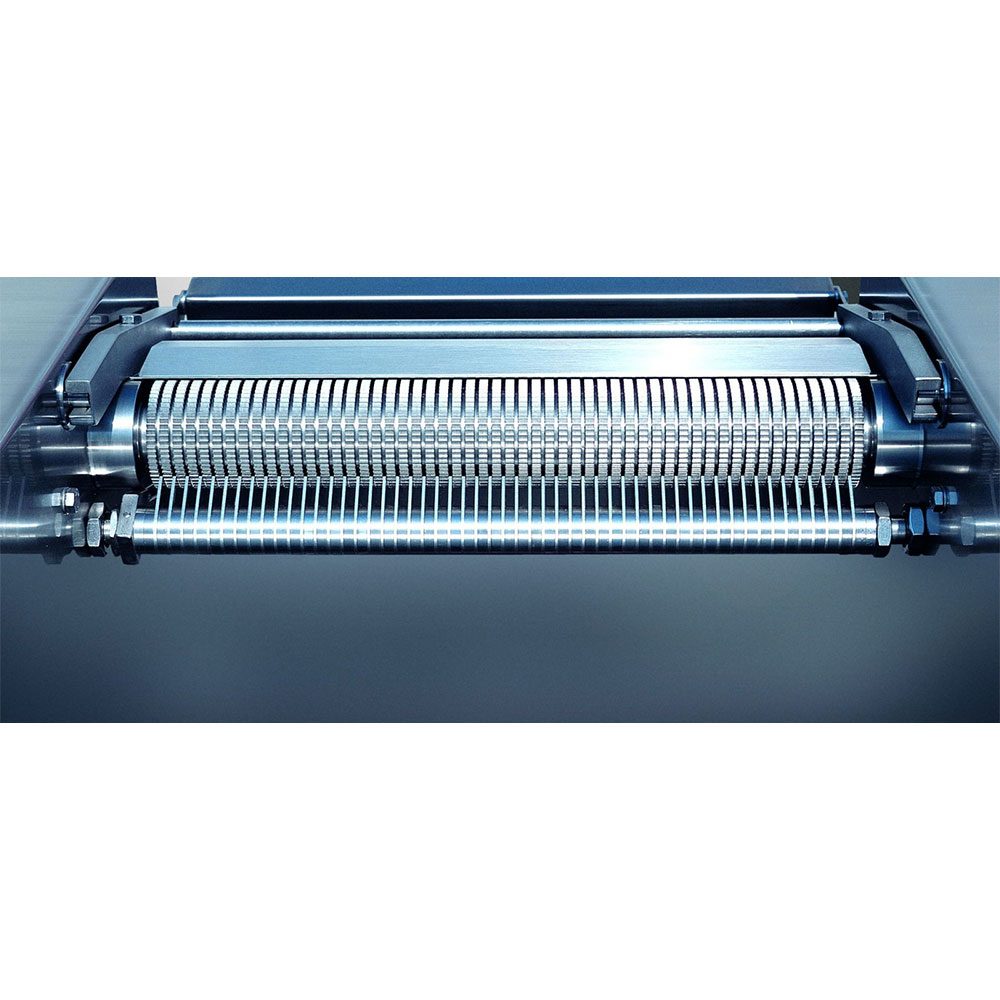

  • tooth roller (AISI 316L) with grooves and scraper comb (CF technology)
  • water cleaning unit for steady continuous operation
  • blade gap infinitely adjustable

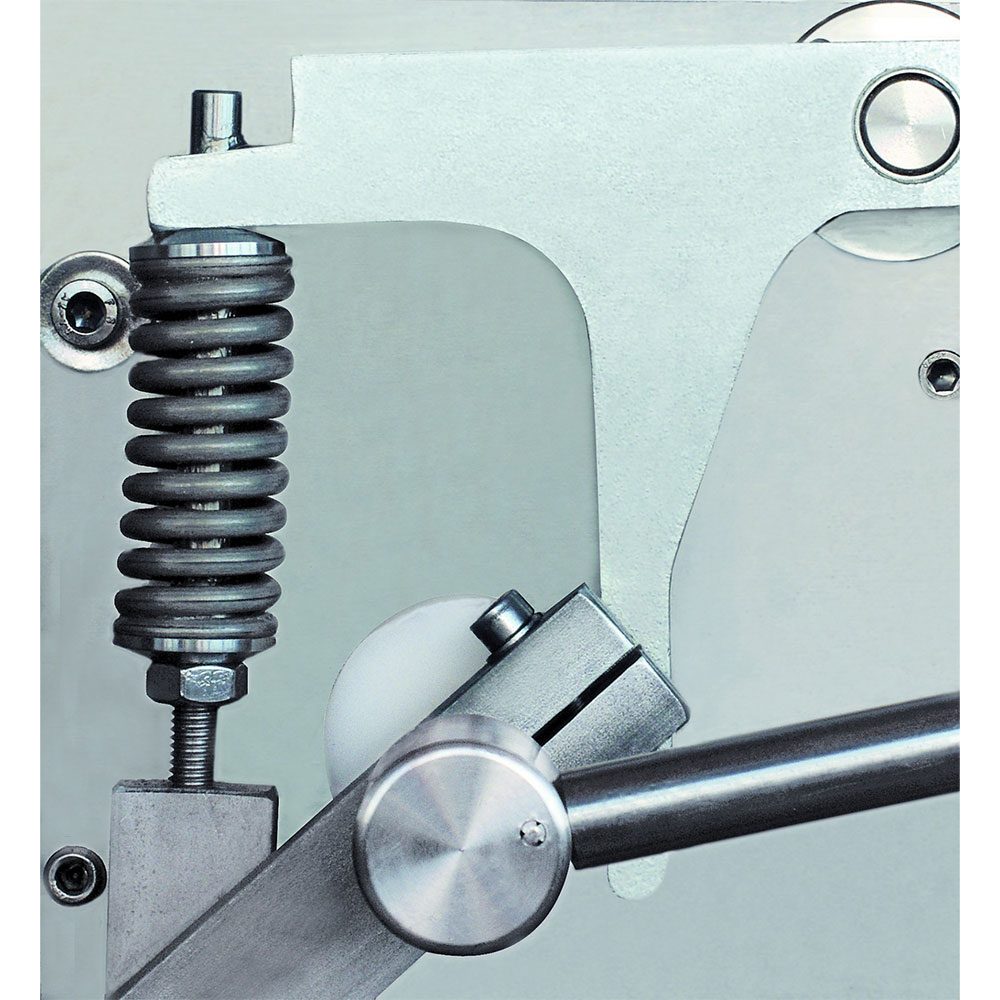

  • spring suspended blade holder for perfect skinning results
  • ergonomic favourable foot switch bar, adjustable in height
  • NOCK POWER PLATES® for a machine construction which is easy to clean, for outstanding robustness and service friendliness
  • lockable castors
  • stainless steel

OPTIONS

TECHNICAL DATA

Cortex CF 460
cutting width 430 mm
cutting speed 24 m/min
blade gap 0 – 0.5 mm infinitely adjustable
overall dimension W x H x D 740 x 960 x 630 mm
weight 150 kg
motor performance 0.75 kW
electrical connection 3 AC – 400 V – 50 Hz
IEC 60309 16 A 6h
other voltages upon request
water connection G 1/4 internal thread
water consumption approx. 100 l/h
compressed air not required
