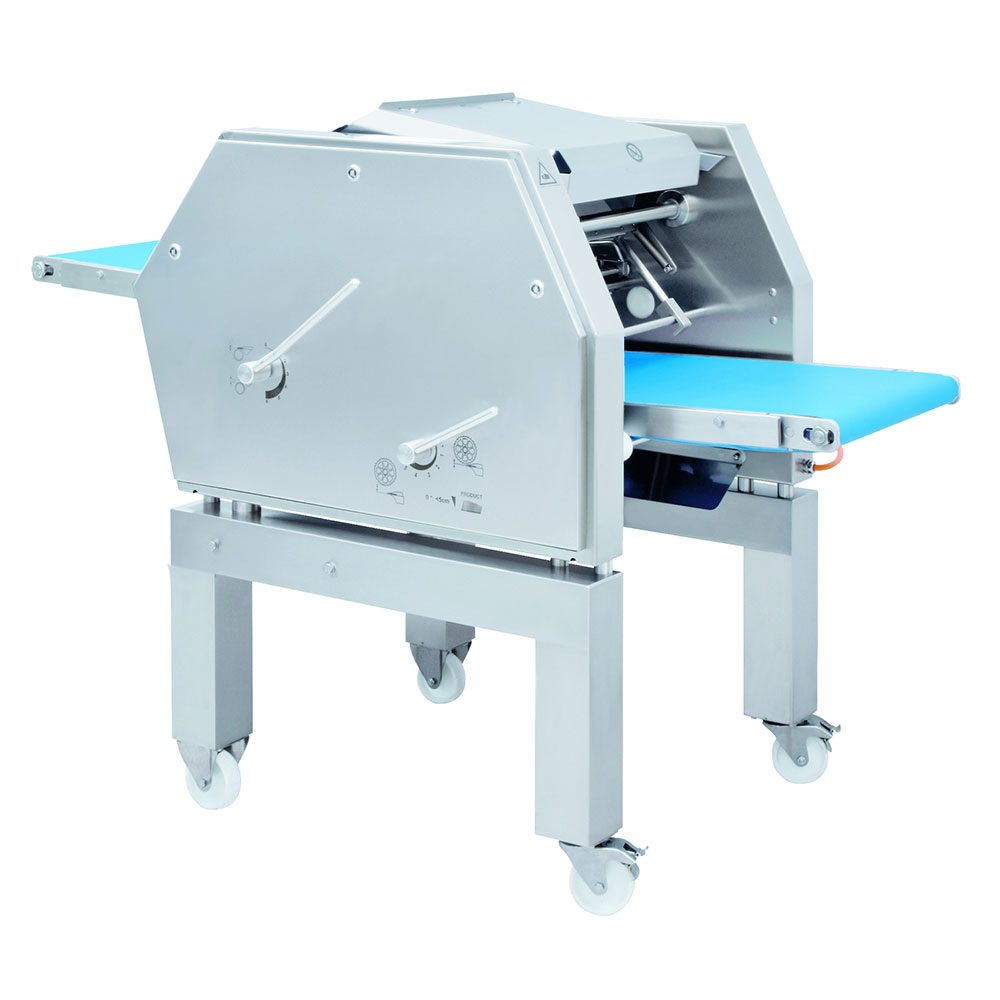

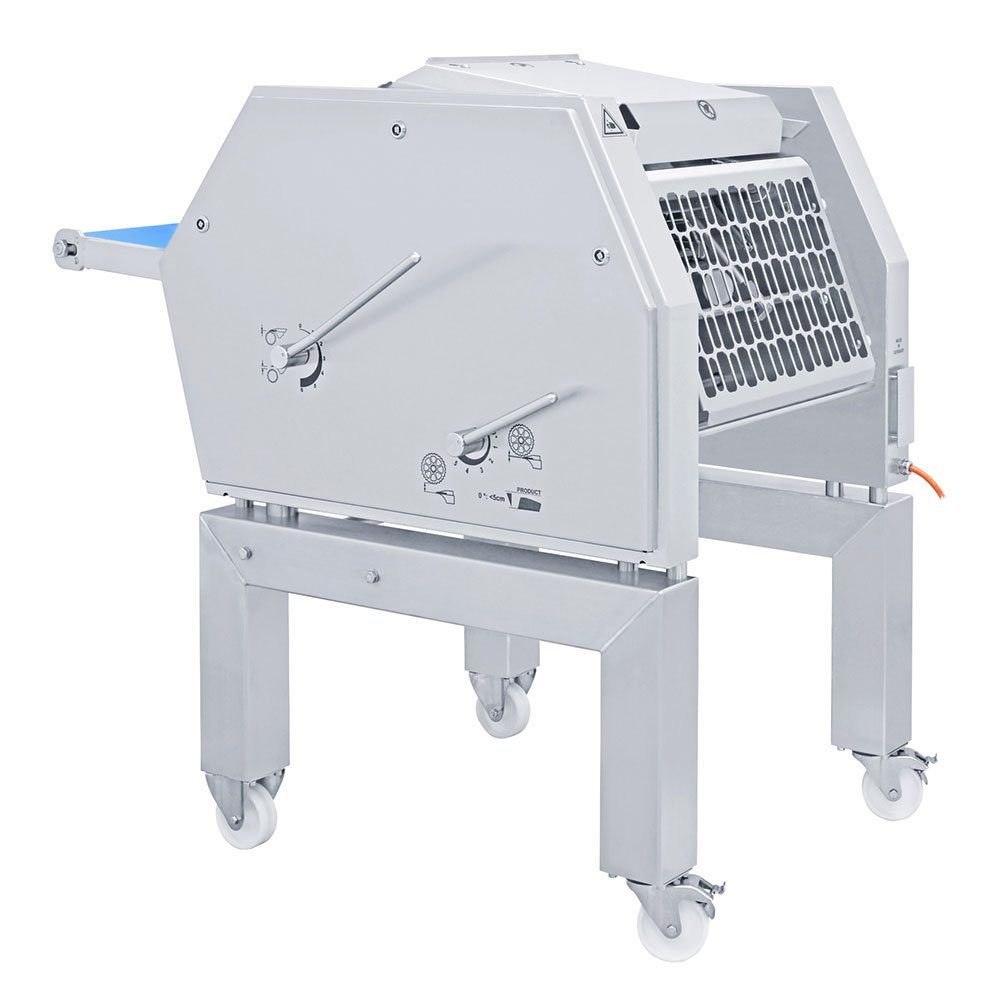

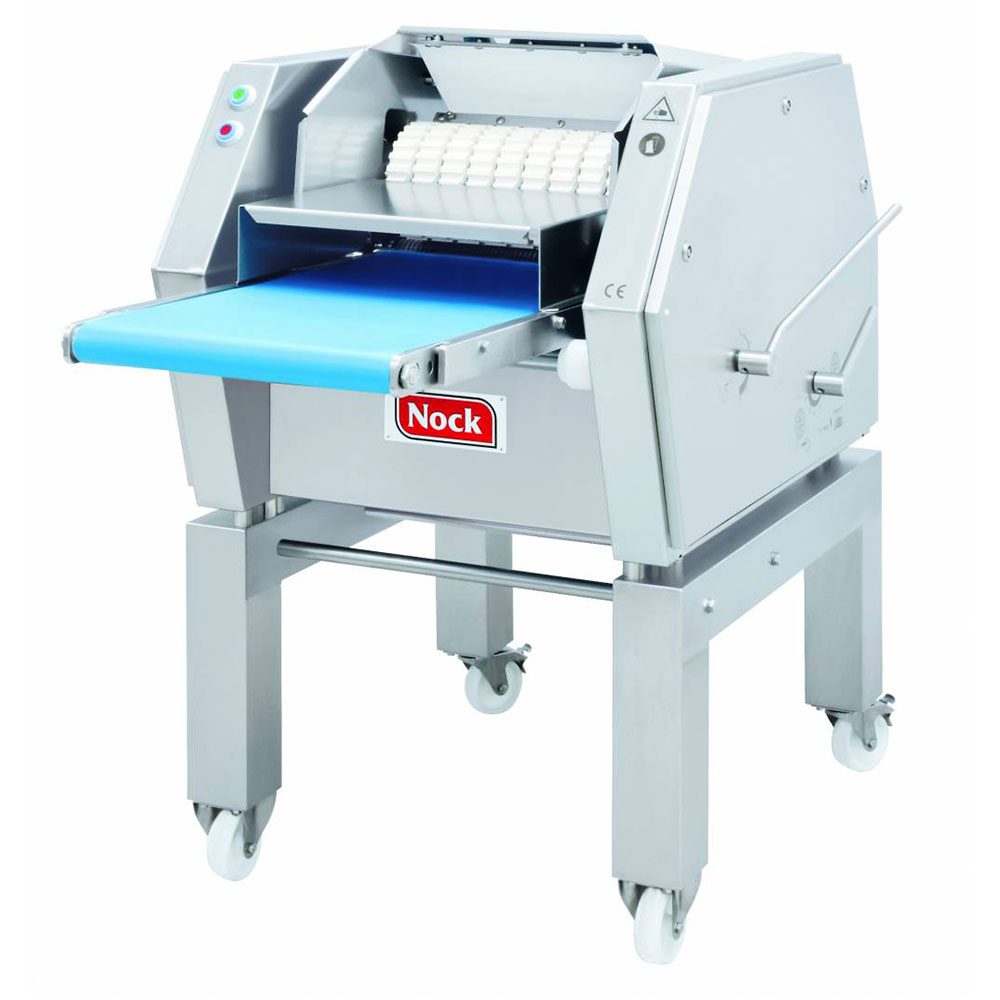

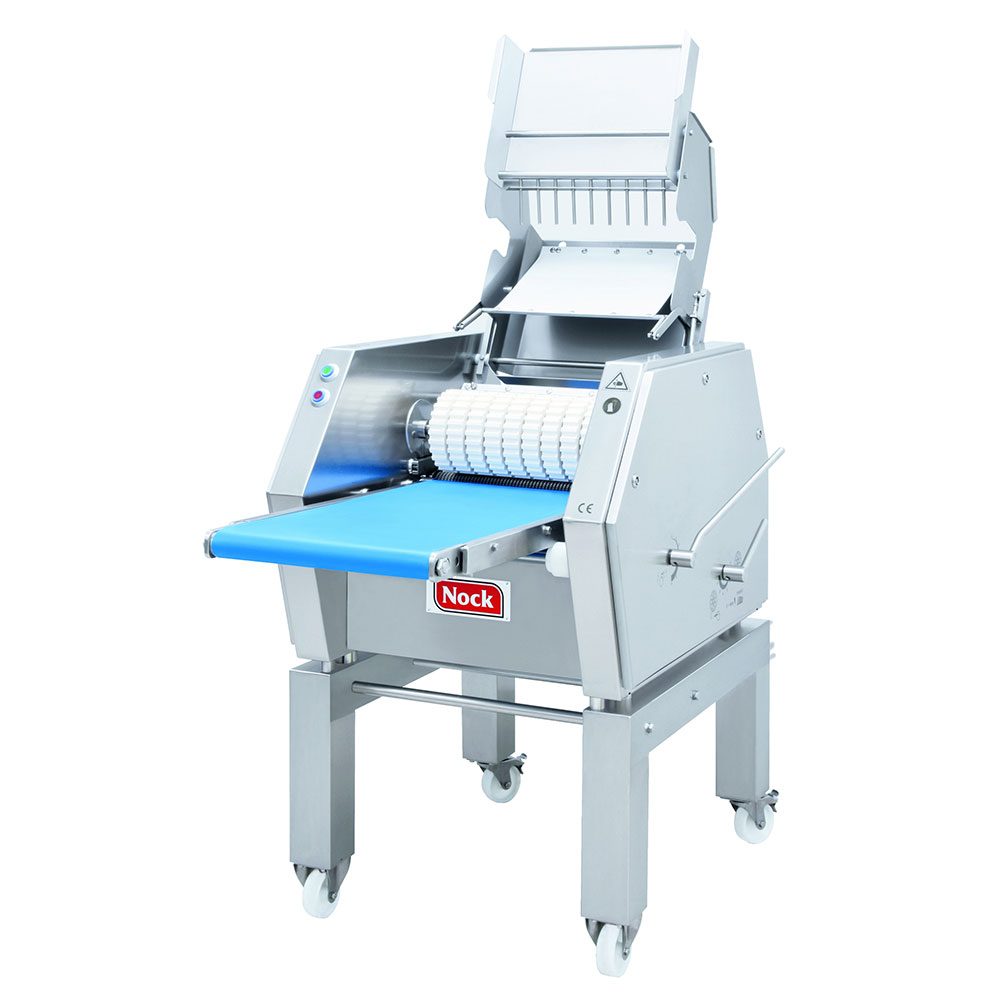

Nock Cortex CB 503 Kebab Machine

The Nock Cortex CB 503 KEBAB is a high-performance slicing machine engineered for precision cutting of Doner and Gyros meat skewers. With a cutting width of 500mm and a processing speed of 31 m/min, it delivers consistently clean, high-quality slices.

The adjustable blade gap (0.5 to 8 mm), which can be modified during operation, allows for versatile use with various types of meat, including veal, beef, pork, turkey breast, and lamb. Its advanced design features a blade holder and spring-suspended transport roller, ensuring gentler, more precise cuts compared to conventional derinders.

SKU: NOCK-CB503-KEBAB Categories: , ,

Description

Built with operator safety and efficiency in mind, the CB 503 KEBAB includes rear access protection and the NOCK INTEGRATED PRODUCT RETURN SYSTEM. The machine’s robust polygon-shaped housing enhances durability, while NOCK POWER PLATES® improve serviceability. Removable conveyors allow for tool-free cleaning, and lockable castors ensure easy mobility. Combining performance, flexibility, and user-friendly design, the CB 503 KEBAB is an ideal solution for demanding meat processing environments.

  • Cutting width: 500mm
  • Cutting speed: 31 m/min
  • Cutting direction: horizontally
  • Max. throughput height: 90mm
  • Blade gap: 0.5 – 8 mm, infinitely adjustable, other thicknesses upon request
  • Apply length on infeed conveyor: 400mm (with INTEGRATED NOCK PRODUCT RETURN SYSTEM)
  • Infeed conveyor (1): 850 x 490mm
  • Discharge conveyor for cut meat slices (1): 850 x 490mm
  • Overall dimension W x H x D: 980 x 1190 x 1360mm
  • Weight: 235kg
  • Motor performance: 1.1 kW
  • Electrical connection: 3 AC – 400 V – 50 Hz, IEC 60309 16 A 6h, other voltages upon request
  • Compressed air: not required

Additional Information

Brand

Application

Height

1190mm

Width

980mm

Depth

1360mm

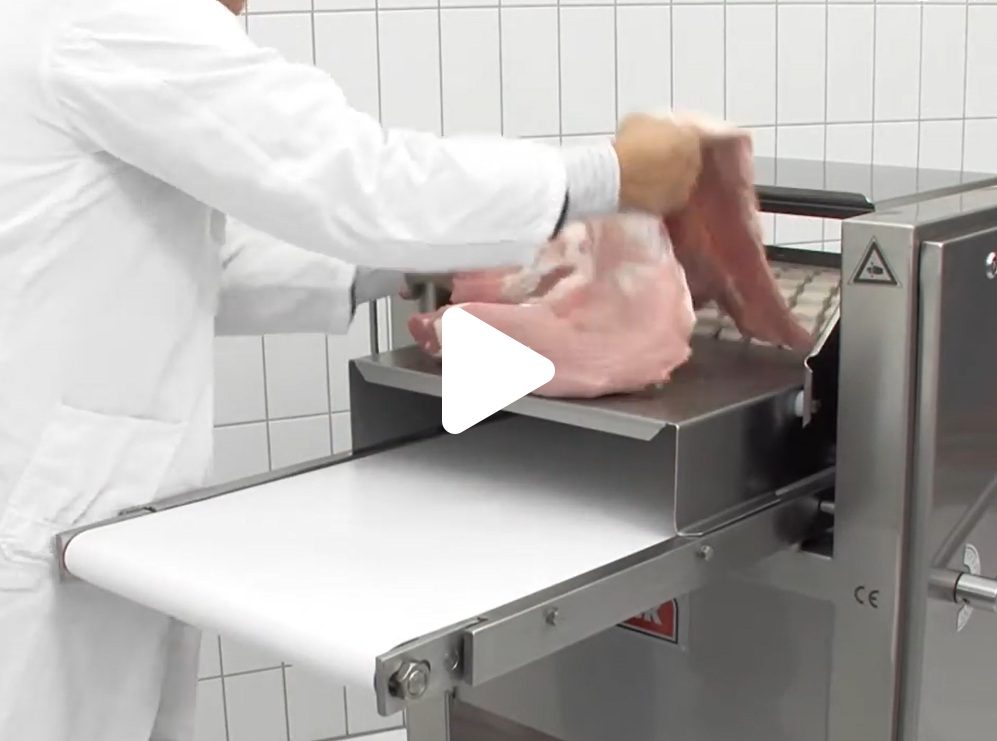

Video
