Name: Nock Cortex CB519/CB619/CB719 Conveyorized Derinding • Argus
Brand: Nock
SKU: NOCK-CB519-CB619-CB719

Nock Cortex CB519/CB619/CB719 Conveyorized Derinding

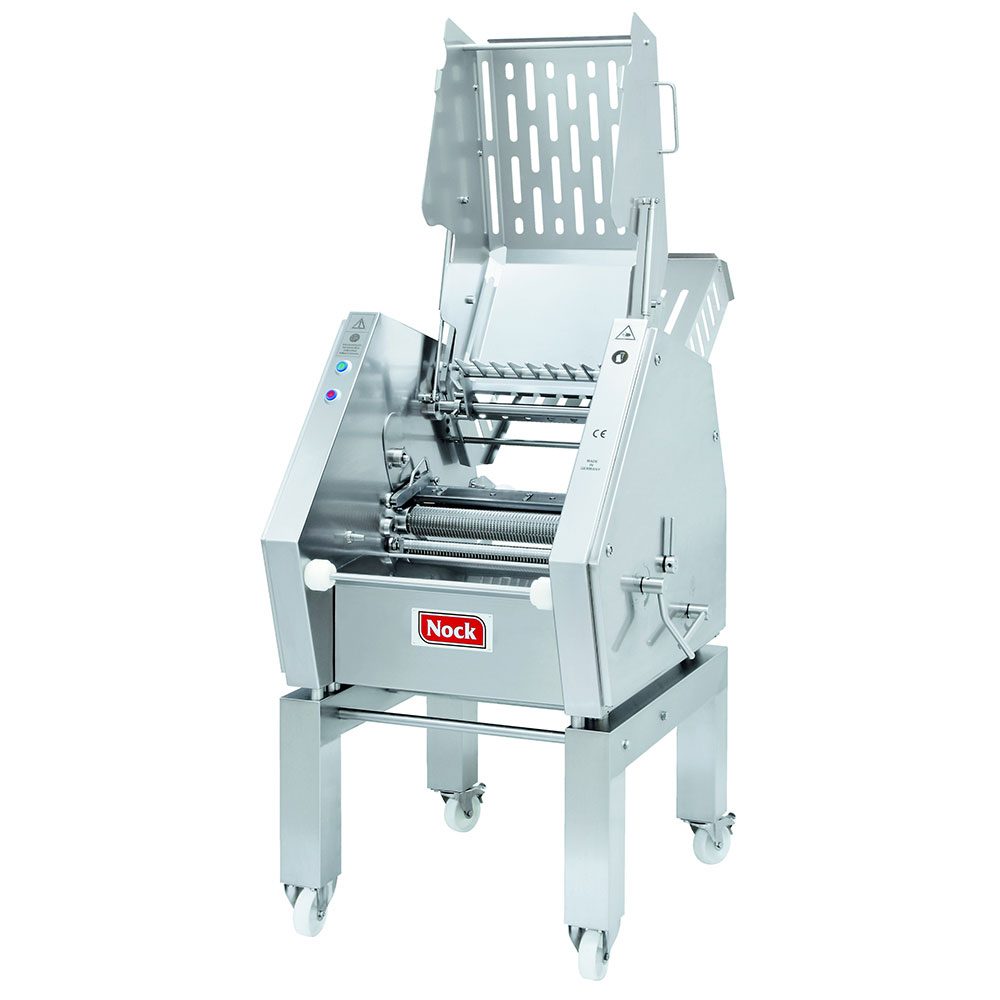

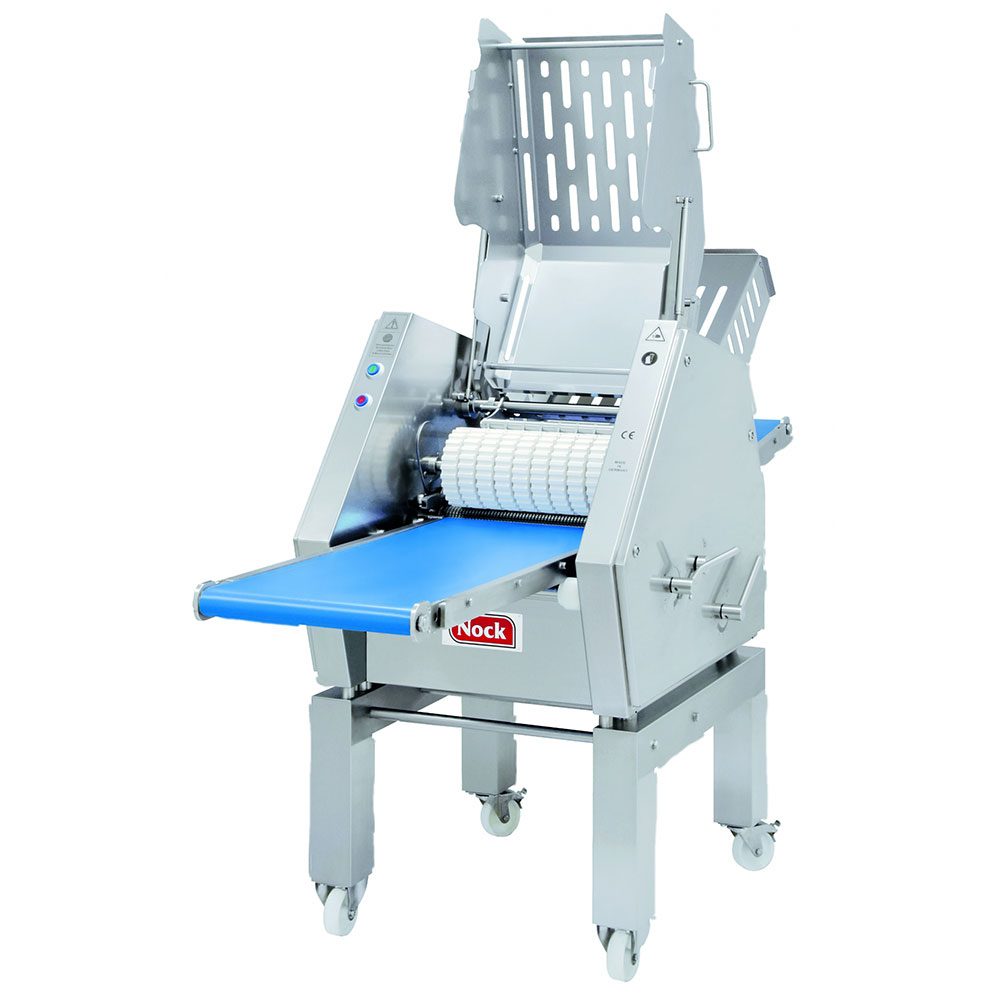

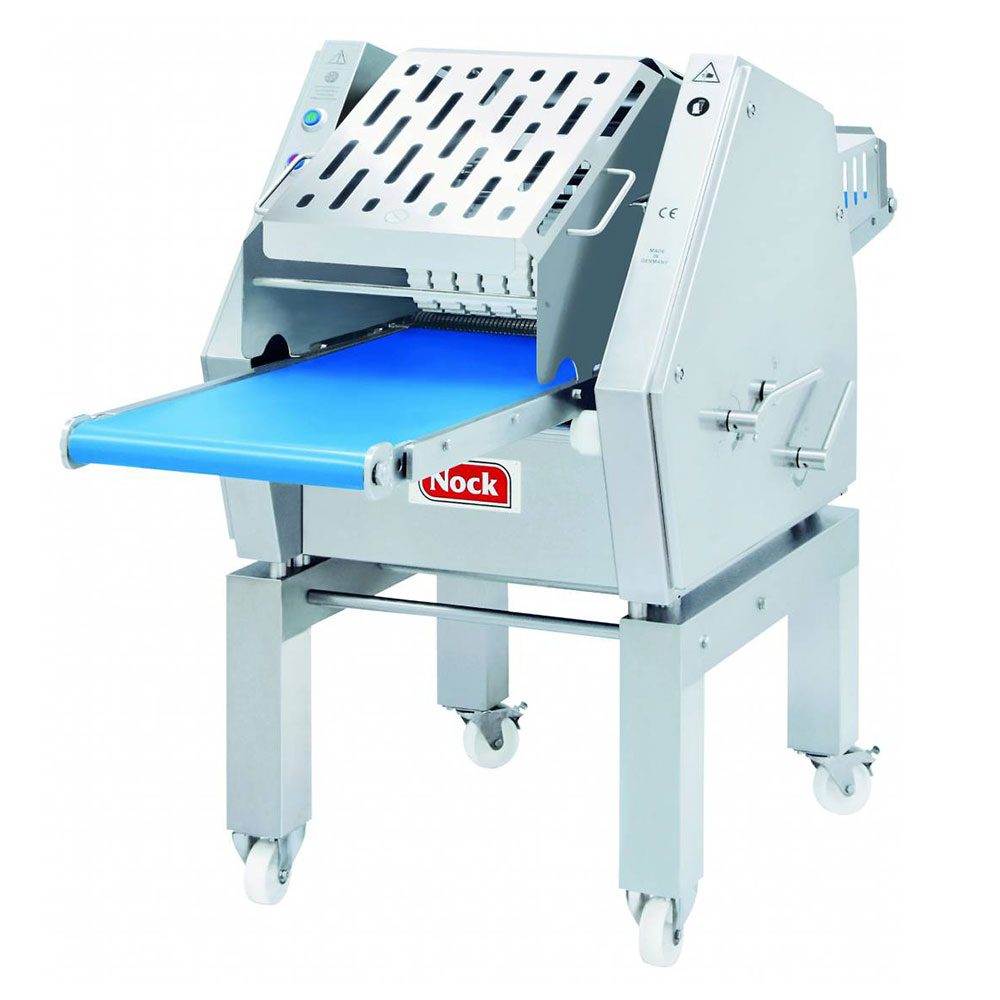

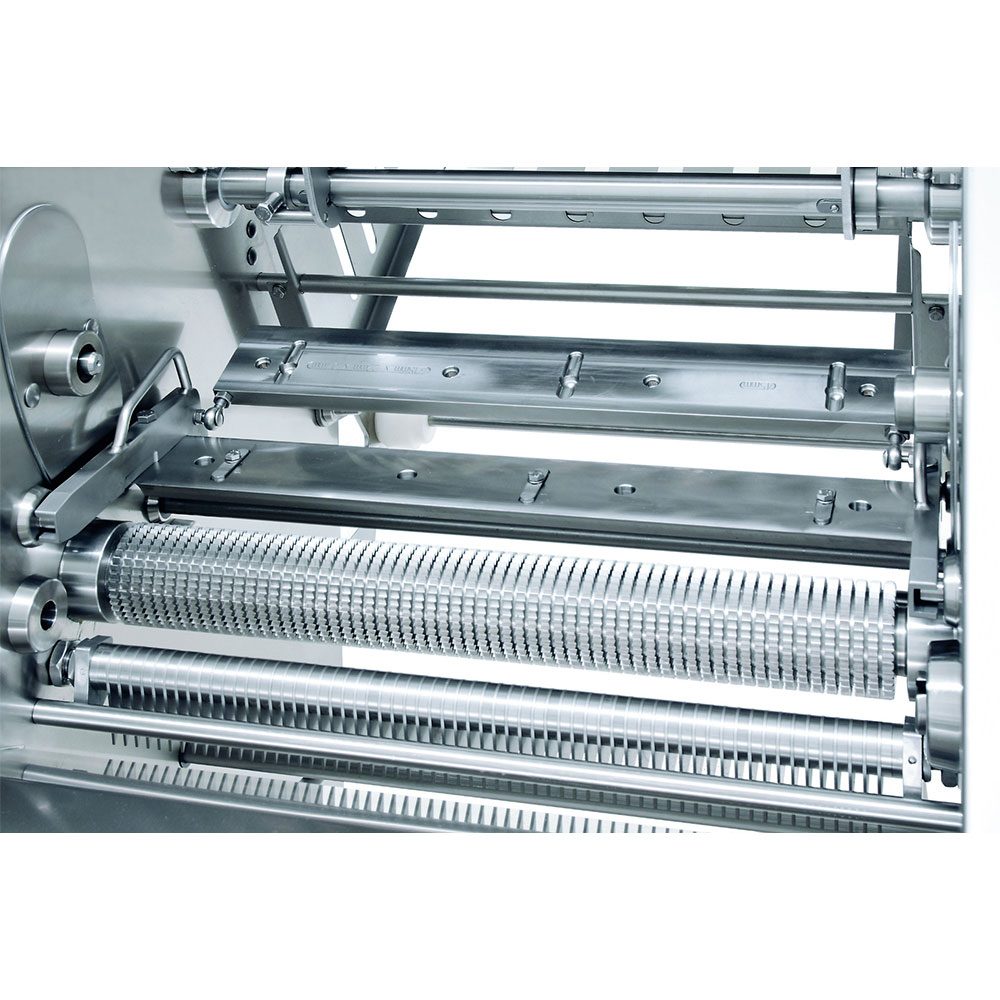

The NOCK CORTEX CB 519 / CB 619 / CB 719 Conveyorised Derinding Machines deliver high-efficiency performance with advanced features like a dynamic pressure system, infinitely adjustable blade gap, and spring-suspended blade holder for consistent, high-quality results. The compact design ensures easy cleaning, while NOCK POWER PLATES® provide durability. Tool-free conveyor removal and stainless steel construction add to the machine’s reliability and ease of maintenance.

Optional upgrades include discharge conveyors for removed skin, plastic modular belts, and the NOCK ACTIVE SKIN GRIPPER® for improved rind quality. These machines can also be customised with plant-specific adaptations or a cleaning trolley for removable parts. Available in three models (CB 519, CB 619, CB 719), they offer versatile and efficient derinding solutions for medium to large-scale meat processing.

Description

Cutting width: 500mm (CB519)/ 600mm (CB619) / 700mm (CB719)
Cutting speed: 31 m/min
Maximum throughput height (mm): 120
Blade gap (mm): 0-5
Apply length on infeed conveyor (mm): 520
Infeed conveyor (mm) (external dimension of the conveyor frame): 1070 x 490mm (CB519) / 1070 x 590mm (CB619) / 1070 x 690mm (CB719)
Discharge conveyor (mm) (external dimension of the conveyor frame): 1070 x 490mm (CB519) / 1070 x 590mm (CB619) / 1070 x 690mm (CB719)
Discharge conveyor for removed skin (mm) (external dimension of the conveyor frame): 850 x 490mm (CB519) / 850 x 590mm (CB619) / 850 x 690mm (CB719)
Overall dimension W x H x D: 865 x 1370 x 2260mm (CB519) / 965 x 1370 x 2260mm (CB619) / 1065 x 1370 x 2260mm (CB719)
Weight: 310kg (CB519) / 330kg (CB619) / 350kg (CB719)
Motor performance: 1.1 kW
Electrical connection: 3 AC – 400 V – 50 Hz, IEC 60309 16 A 6h, other voltages upon request
Compressed air connection: 5 < p <10 bar, plug coupling DN 7.2 (G1/4 external)
Compressed air requirements: approx. 250 l/min (ambient pressure)
